Quick Details

  • Condition: New
  • Type: plywood equipment
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: BSY
  • Model Number: BD1308/20 ,BQ1220/8
  • Certification: ISO9001,CE
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • made by iron plate: hydraulic

Packaging & Delivery

Packaging Details standard export cargo
Delivery Time about 60 days after received down payment

Specifications

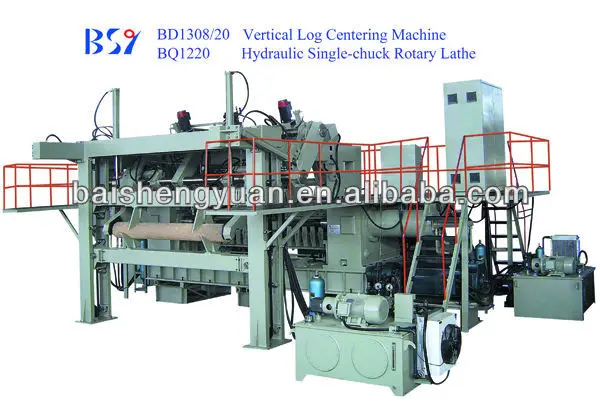

1. BD1308/20 Vertical Log Centering Machine
2.BQ1220/8 Hydraulic Single-chuck Rotary Lathe



1. This is 6 feet veneer productiong line, includes vertical centering machine and single-spindle rotary peeling machine.

2. With CNC control and CE certification, it is very popular in European market.



MODEL

BQ1220/8

Max.cutting diameter(mm)

170-800

Max,cutting length(mm)

1600-2000

Range of veneer thickness(mm)

0.35-4.2

Chuck diameter(mm)

100

Max.rotating speed of spindel(rpm)

160

Quick forward and backward speed of tool cartridge(m/min)

2.35

Main motor power(kw)

75

Rapid feed motor power(kw)

4

Hydraulic motor power(kw)

7.5

Grinding angle of appropriate tool cartridge

18o-22o

General motor(kw)

89.5

Overall dimensions(mm)

7945×1770×1909

Weight(kg)

16000



MODEL

BD1308/20

Max.Centering diameter(mm)

800

Min.Centering diameter(mm)

200

Max.Log length(mm)

2100

Min.Log length(mm)

1600

Log conveying(m/min)

12.5

Total motor power(kw)

27.5

Air supply capacity (m3/h)

5

Overall size(length×width×height)(mm)

6506400×4250

Net weight(kg)

5000

Why do you choose us:

1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.

2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.

4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.

The main productions include: log debarker, log charger, double-spindle veneer peeling lathe, single-spindle veneer peeling lathe, CNC non-spindle veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, Four Side Moulders, Rip Saw, Finger Jointer Line, Profile Grinders, Double Side Planer, Surface Planers, Bandsaw ,sanding machine etc.
